The SpeedEye 18:
A 18" Radar Speed Sign
ADAPTIVE SPEED
The SpeedEye 10: A 18" Radar Speed Sign

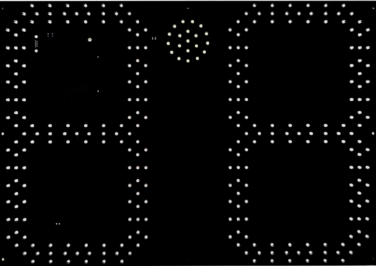

The SpeedEye 18 is a compact speed feedback sign component designed for low power consumption. It features cutting-edge Doppler radar technology combined with an amber, sunlight-readable, two-digit 7-segment display, making it perfect for slim radar signs on highways, work zones, and roads with higher speed limits or where long-range visibility is essential. By adding a power source and an enclosure, this kit can be swiftly transformed into a market-ready product.
Features & Benefits
Rapid Assembly
Can be assembled in minutes because of the highly integrated design and 0 involvement of wires.
Power Efficiency
Best in class power efficiency achieved by low power DR600 radar, ambient temperature compensation of LED drive voltage, high efficiency boost regulator for LED drive voltage, and automatic brightness control and in-built ambient sensing
Power Saving
In the absence of traffic, radar automatically shuts down the display and reduces power consumption to only 0.1W
User Customization
User can set cutoff and violator speed alerts without an external computerbecause of a built-in rotary switch. Flexible power supply options ranging from 12V Lead Acid batteries to 3,4 or 5 cell Lithium Ion packs without sacrificing sign efficiency
Expandability and Compliance
Expandable Design
Expandable up to a third digit and "SLOWDOWN" via connector.
Driver Compliance
The driver is made to pay attention and comply with the speed limit because of a White LED strobe and display flashing.
Regulatory Approvals
FCC approved radar, meaning no need for a license to use our product. User can collect traffic statistics and data with the optional data collection option.
Specifications and Recommended Operating Conditions
| Specification | Recommended Condition |
| Vcc | 8.5VDC to 16VDC (18V max) |
| Icc@12VDC (Radar always on) | Display blank: 20 mA typ, Display at night: 72 mA typ, Display max bright: 600 mA typ |
| Radar RF out | 20dBm |
| Radar fcenter | 24.125GHz or 24.200 GHz |
| Operating °F (°C) | -40 (-40) min to 185 (85) max |
| Pickup Distance | 2000+ feet (600+ m) typical in full range mode |
| Beam Angle | 9x18 |
| Beam Polarization | Linear |
| FCC ID (Radar) | TIADR600 |
| CE Mark (Radar) | Yes |
| Dimensions | 18.5"x26.8"x1.3" (47 x 68 x 3.2 cm) |
| Weight | 4.6 lbs (2.1kg) approximately |
| Display Brightness | 11,000 nits (cdm) maximum, 550 nits (cdm) at night |
