The SpeedEye 10:
A 10.5" Radar Speed Sign
ADAPTIVE SPEED
The SpeedEye 10: A 10.5" Radar Speed Sign

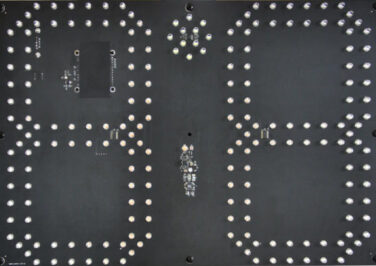

The SpeedEye 18 is a compact speed feedback sign component designed for low power consumption. It features cutting-edge Doppler radar technology combined with an amber, sunlight-readable, two-digit 7-segment display, making it perfect for slim radar signs on highways, work zones, and roads with higher speed limits or where long-range visibility is essential. By adding a power source and an enclosure, this kit can be swiftly transformed into a market-ready product.
Features & Benefits
Quick Assembly
Can be assembled in minutes because of the highly integrated design and 0 involvement of wires.
Optimal Legibility
A digit height of 10.5 inches with 30% inter-character spacing is designed to match the radar's 300 ft (90 m) detection range, ensuring optimal display legibility.
Power Efficiency
Best in class power efficiency achieved by eliminating the need for an external CPU, automatic brightness control, ambient temperature compensation, and high efficiency boost regulator for LED drive voltage.
Power Saving
More power saving as radar shuts down display in absence of traffic, reducing power consumption to only 0.06 W.
Flexible and Expandable
Power Supply Options
Flexible power supply options ranging from 12V Lead Acid batteries to 3,4 or 5 cell Lithium Ion packs without sacrificing sign efficiency.
Customization
Cutoff and violator speed alerts can be set without connecting to an external computer because of a built-in rotary switch. Can be expanded to a third digit using a 5-pin connector.
Regulatory Compliance
No need for another license as radar is FCC approved with CE mark. Available in 24.125GHz and 24.200GHzversions.
Specifications and Recommended Operating Conditions
| Specification | Recommended Condition |
| Vcc | 5.5VDC to 16VDC (18V max) |
| Icc@12VDC (Radar always on) | Display blank: 9.5 mA Display at night: 21 mA Display max bright: 415 mA |
| Radar RF out | 5 mW maximum |
| Radar fcenter | 24.125GHz or 24.200 GHz |
| Operating °F (°C) | -40 (-40) min to 185 (85) max |
| Pickup Distance | 300+ feet (90+ m) in most cases |
| Beam Angle | 38x45 |
| Beam Polarization | Linear |
| FCC ID (Radar) | UXS-IPS154US |
| CE Mark (Radar) | Yes |
| Dimensions | 11"x16"x1.1" (28 x 41 x 2.8 cm) |
| Weight | 1 lbs (450g) approximately |
| Display Brightness | 11,000 nits (cdm) maximum 550 nits (cdm) at night |
